1. Maximum build size of the metal 3D printer: 250 x 250 x 325 mm;
2. 3D printing layer thickness: 0.02 mm – 0.04 mm;
3. Achievable 3D printing accuracy: typical accuracy ±0.02–0.05 mm (accuracy depends on geometry and varies with part size, build orientation, material and post-processing method);
4. Post-processing: high-temperature annealing, polishing, welding and other processing;

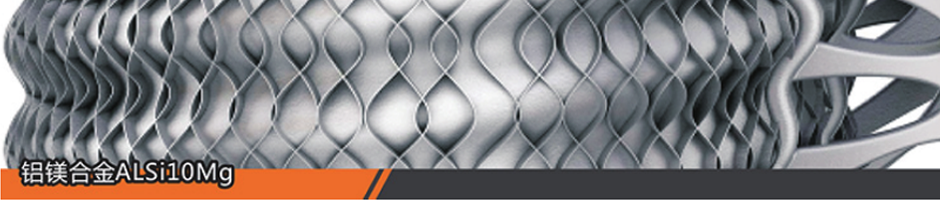

The 3D printing metal powder aluminum-magnesium alloy AlSi10Mg is highly suitable for combinations requiring good thermal performance and low weight. It can be machined, spark-eroded, welded, micro-shot-peened, polished and electroplated.

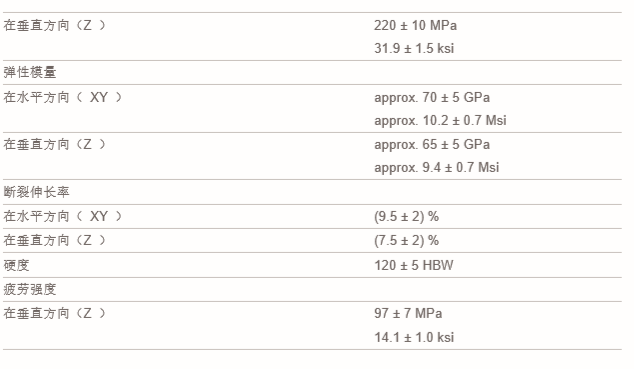

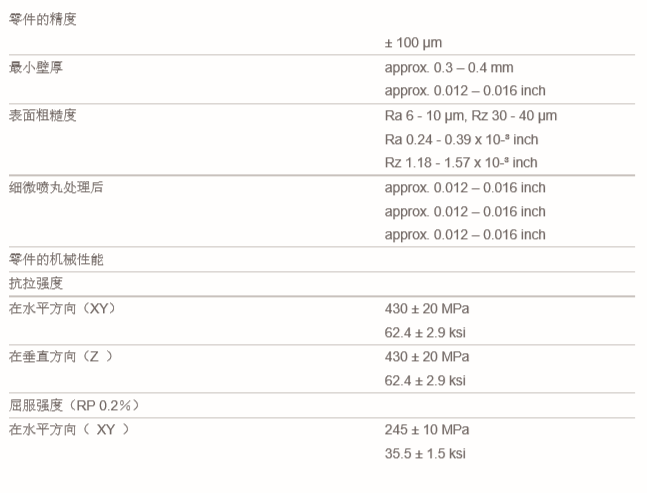

Material Data
Notes: 1. Mechanical strength testing per Annex D of ISO 6892-1:2009 (B), proportional test pieces with a diameter of 5 mm and an original gauge length of 25 mm (1 in). 2. Brinell hardness (HBW 2.5/62.5) testing per DIN EN ISO 6506-1. Please note that measured hardness can depend significantly on how the sample has been prepared. 3. Fatigue test at a test frequency of 50 Hz, R = -1, measurement stopped at 5 million cycles without fracture. Stress relief: anneal at 300 °C (572 °F) for 2 hours.
*All values are taken from documentation provided by the manufacturer of this specific material. No claim is made as to the accuracy of these data, since every individual application may vary. If you have any questions, please contact the manufacturer for product-specific information.
