3D Printing Technical Specifications
1. Build size (single print): 700 x 380 x 580 mm;
2. Layer thickness: 0.06 mm – 0.18 mm;
3. Achievable accuracy: ±0.15 mm (accuracy depends on geometry and varies with part size, printing method and post-processing method);
4. Post-processing: high-temperature dyeing, metal coating and drilling are available.
Properties
Alumide aluminum-filled nylon is a gray PA12 powder filled with aluminum powder, characterized by high stiffness and a good metallic surface. Laser-sintered parts made from PA3200 GF have excellent material properties:
• High stiffness
• High-temperature performance
• Excellent surface quality
• High dimensional accuracy
• Good machinability
• Limited thermal conductivity
A typical application is thermally loaded parts with a metallic appearance.
Mechanical and Thermal Properties

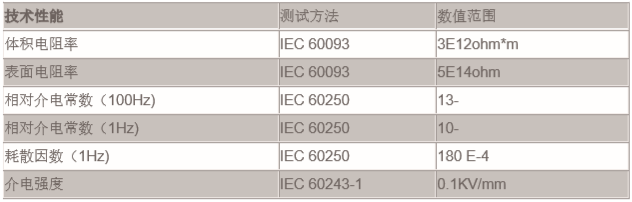

Electrical Properties
*All values are taken from documentation provided by the manufacturer of this specific material. No claim is made as to the accuracy of these data, since every individual application may vary. If you have any questions, please contact the manufacturer for product-specific information.
