1. Maximum build size: 298 x 185 x 203 mm;
2. Layer thickness: 0.016 mm – 0.029 mm;
3. Achievable accuracy: typical accuracy of ±0.025–0.05 mm per 25.4 mm of part dimension; accuracy may vary with modeling parameters, part geometry and size, part orientation and post-processing.
4. Post-processing: workpieces can be painted, electroplated, drilled and bonded;
Properties

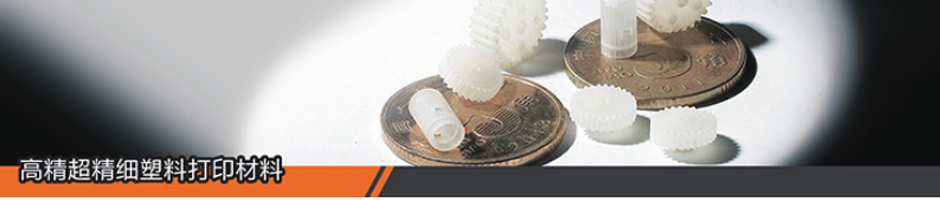

It is a translucent white, white or yellow resin material similar to ABS. It is suitable for producing precise, high-definition models and prototypes with ultra-fine detail. These printed parts can be used across industries for proof of concept, functional testing, master models for tooling, and direct precision casting.

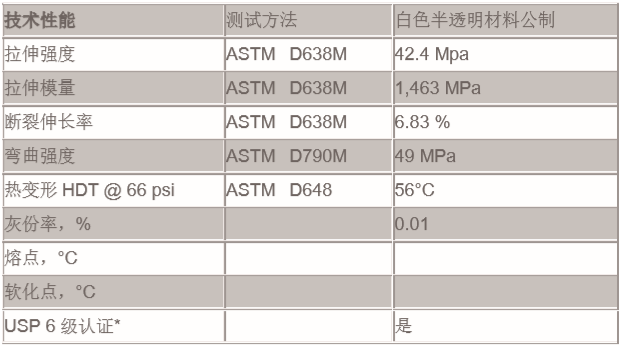

0.016 mm Accuracy White Material — Thermal and Mechanical Properties

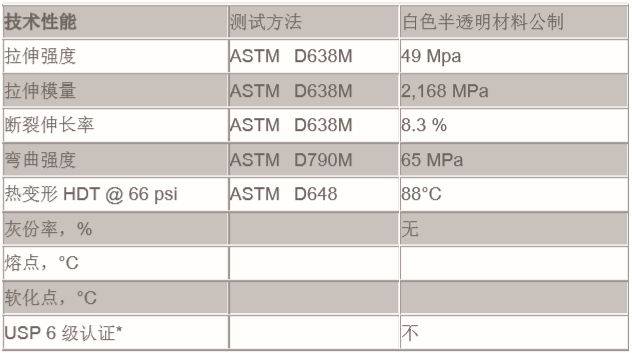

0.029 mm Accuracy — Thermal and Mechanical Properties

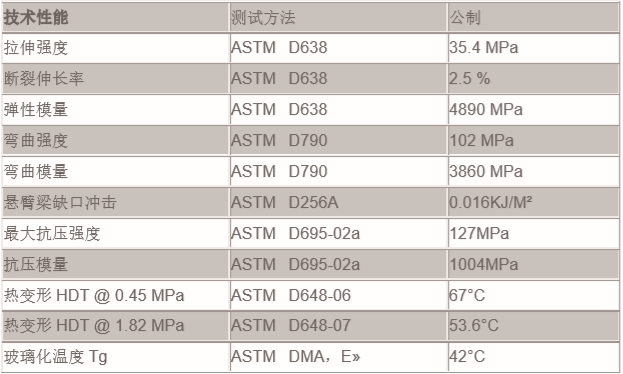

Dark Green High-Temperature Material — Thermal and Mechanical Properties

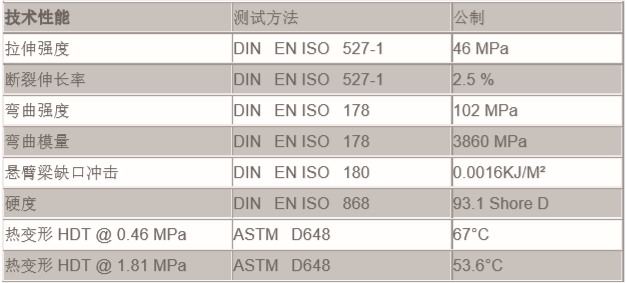

Red High-Resolution — Thermal and Mechanical Properties

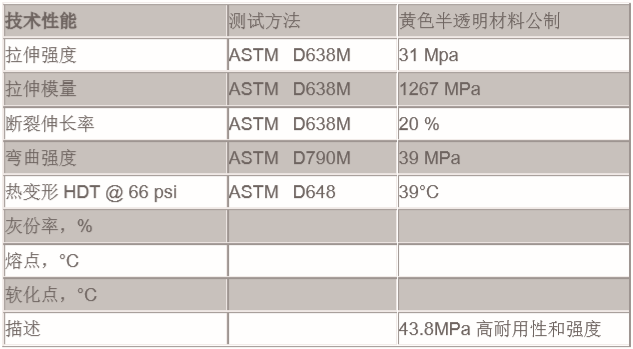

Yellow High-Temperature Material — Thermal and Mechanical Properties
*All values are taken from documentation provided by the manufacturer of this specific material. No claim is made as to the accuracy of these data, since every individual application may vary. If you have any questions, please contact the manufacturer for product-specific information.
