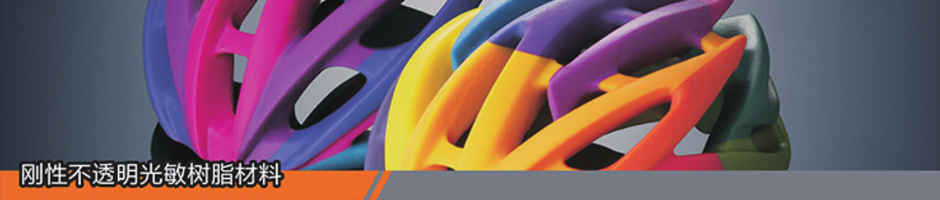

The world's unique multi-material 3D printer, revolutionizing full-color and multi-material mixed printing for versatility and realism. PolyJet 3D printing is an additive manufacturing process that can produce parts, prototypes and models using multiple materials, colors and color textures.

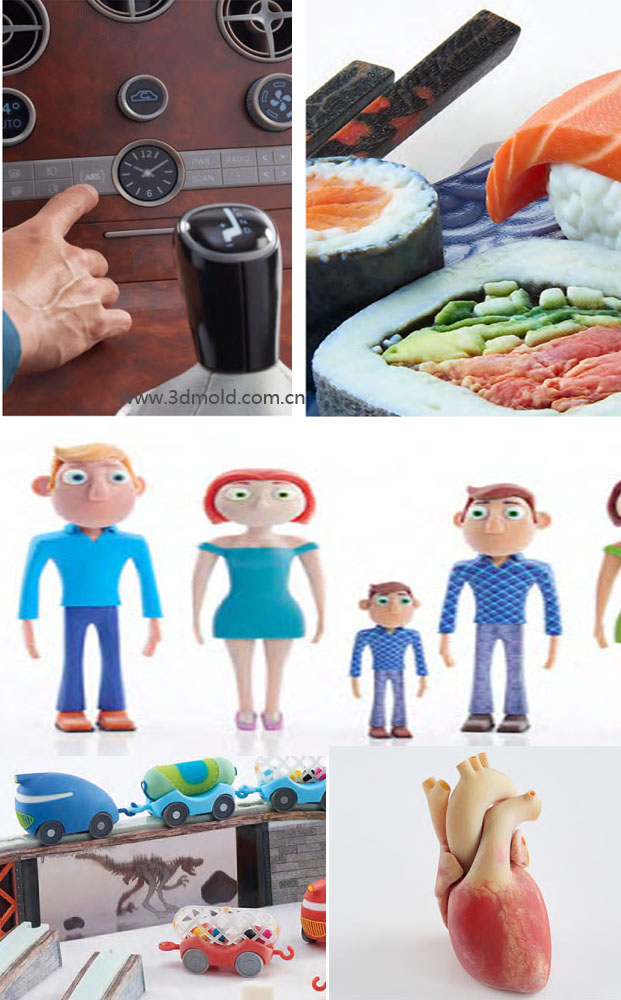

A single 3D printing job can combine all these characteristics, enabling faster production of complex parts with multiple properties. It can print in 5 different colors: cyan, magenta, yellow, black and white. It can use all the primary colors in CMYK color processing (including white), and the printed colors resemble those of a full-color 2D document printer printing on a white background, thus achieving a wide color gamut. In addition, color textures and gradients can be produced. The color texture capability means rigid opaque parts can be 3D printed with a variety of realistic patterns such as wood grain and checkered patterns, even photos and illustrations. Gradients, meanwhile, create a transition zone between colors that blend into one another.
Rapidly producing durable, realistic models and prototypes gives designers full flexibility. Printing several concept or design variants in the same production batch means more iterations in less time, enabling faster and better design decisions.
3D Printing Technical Specifications
1. Build size (single print): 49 x 39 x 20 cm (19.3 x 15.35 x 7.9 in);
2. Layer thickness: 42 µm on the X axis, 42 µm on the Y axis, 16 µm on the Z axis;
3. Achievable accuracy: forming accuracy ±0.1 mm (L ≤ 100 mm) or ±0.1% × L (L > 100 mm)
4. Post-processing: easy polishing, painting, electroplating and drilling; large parts can be assembled from sections;

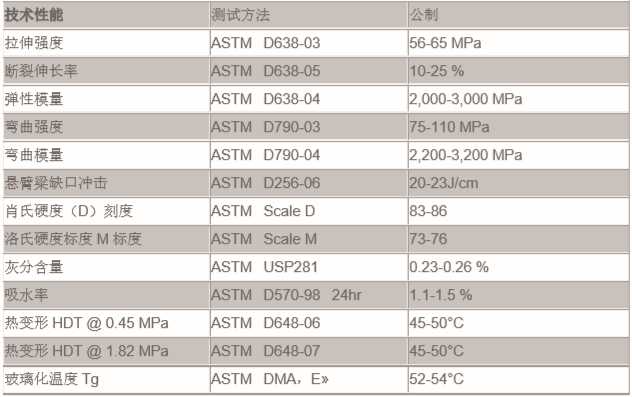

Properties
Objet VeroGray FullCure850, VeroBlack FullCure870 and VeroWhitePlus FullCure835 are durable photosensitive resin materials similar to ABS, with an opaque white or colored appearance.
*All values are taken from documentation provided by the manufacturer of this specific material. No claim is made as to the accuracy of these data, since every individual application may vary. If you have any questions, please contact the manufacturer for product-specific information.
