3D Printing Technical Specifications
1. Maximum build size (single print): 406 x 355 x 406 mm;
2. Layer thickness: 0.127 mm, 0.178 mm, 0.254 mm, 0.330 mm;
3. Achievable accuracy: part accuracy of ±0.127 mm (±0.005 in) or ±0.0015 mm/mm (±0.0015 in/in), whichever is greater. (Accuracy depends on geometry. Achievable accuracy specifications come from statistical data with a 95% confidence level.)
4. Post-processing: polishing, painting, electroplating and drilling are available;
Material Properties
PC (polycarbonate) is widely used in automotive, aerospace, medical and many other fields. PC's precision, durability and stability allow products made from it to withstand functional testing in real-world use environments. Compared with ABS and other thermoplastics, PC also offers outstanding mechanical properties.

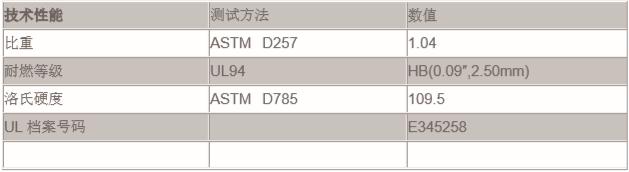

Mechanical Properties

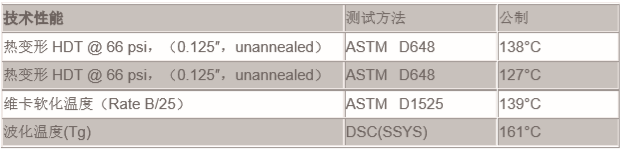

Thermal Properties
Electrical Properties
Electrical Properties
*All values are taken from documentation provided by the manufacturer of this specific material. No claim is made as to the accuracy of these data, since every individual application may vary. If you have any questions, please contact the manufacturer for product-specific information.
