3D Printing Technical Specifications
1. Maximum build size (single print): 406 x 355 x 406 mm;2. Layer thickness: 0.127 mm, 0.178 mm, 0.254 mm, 0.330 mm;
3. Achievable accuracy: part accuracy of ±0.127 mm (±0.005 in) or ±0.0015
mm/mm (±0.0015 in/in), whichever is greater. (Accuracy depends on geometry. Achievable accuracy specifications come from statistical data with a 95% confidence level.)
4. Post-processing: polishing, painting, electroplating and drilling are available.
Material Properties
ABS-M30 is a rigid engineering thermoplastic with superior mechanical properties. Its stable material properties support accurate functional testing and enable 3D prototypes that closely resemble the real product. ABS-M30 is 25%–70% stronger than ABS. It is an ideal material for concept and functional models, tooling and finished parts. ABS-M30 offers better ductility and compressive strength, and higher flexural strength than ABS. Its interlayer adhesion is noticeably better than ABS, making it suitable for producing highly durable parts.

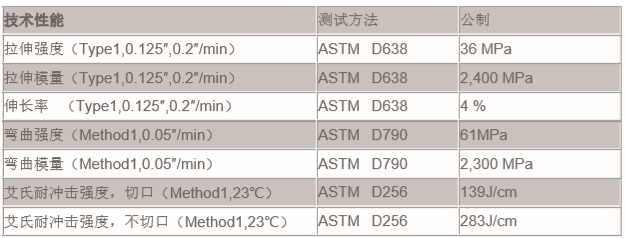

Mechanical Properties
Thermal Properties

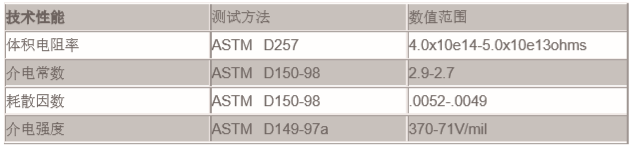

Electrical Properties
Other
*All values are taken from documentation provided by the manufacturer of this specific material. No claim is made as to the accuracy of these data, since every individual application may vary. If you have any questions, please contact the manufacturer for product-specific information.
