3D Printing Technical Specifications
1. Build size (single print): 700 x 380 x 580 mm;
2. 3D printing layer thickness: 0.06 mm – 0.18 mm;
3. Achievable accuracy: ±0.15 mm (accuracy depends on geometry and varies with part size, printing method and post-processing method);
4. Post-processing: high-temperature dyeing, metal coating and drilling are available;

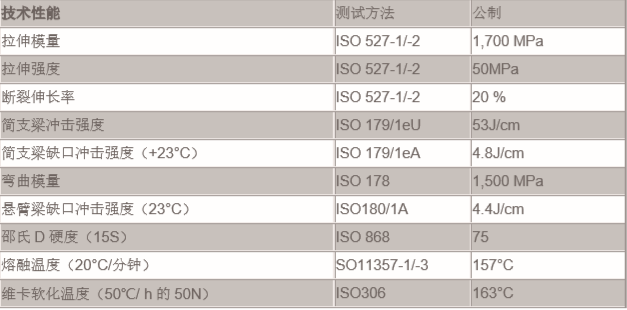

Nylon 3D Printing Material Properties

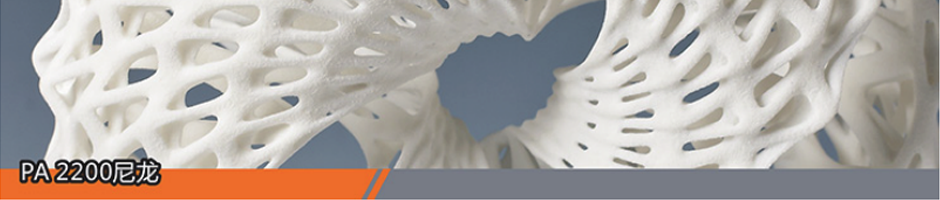

Laser-sintered parts made from PA 2200 have excellent material properties:
• High strength and stiffness
• Good chemical resistance
• Excellent long-term stability
• High selectivity and detail resolution
• A wide range of finishing options (such as metallizing, glazing, vibratory grinding, dip dyeing, bonding, powder coating and flocking)
• Biocompatible in accordance with EN ISO 10993-1 and USP Class VI / 121 °C
• Approved for food contact under EU plastics directive 2002/72/EC (exception: foods with high alcohol content). Typical applications for this material are fully functional plastic parts of the highest quality. Thanks to its excellent mechanical properties it is often used to replace typical injection-molded plastics. Its biocompatibility allows use in applications such as prostheses, and its high wear resistance enables, for example, movable joint connections.
100-micron layer
This parameter set is for parts with very high demands on mechanical properties and fracture behavior, especially when the part will bear multiaxial loads in all three directions. Parts produced with it are characterized by the greatest possible isotropic strength and stiffness. A 100-micron layer thickness results in fine resolution together with very high surface quality and detail resolution.
Electrical Properties
*All values are taken from documentation provided by the manufacturer of this specific material. No claim is made as to the accuracy of these data, since every individual application may vary. If you have any questions, please contact the manufacturer for product-specific information.
